AMH 16 Ton Weld-on Bucket Hook – #WBH16 Affordable

Product Description

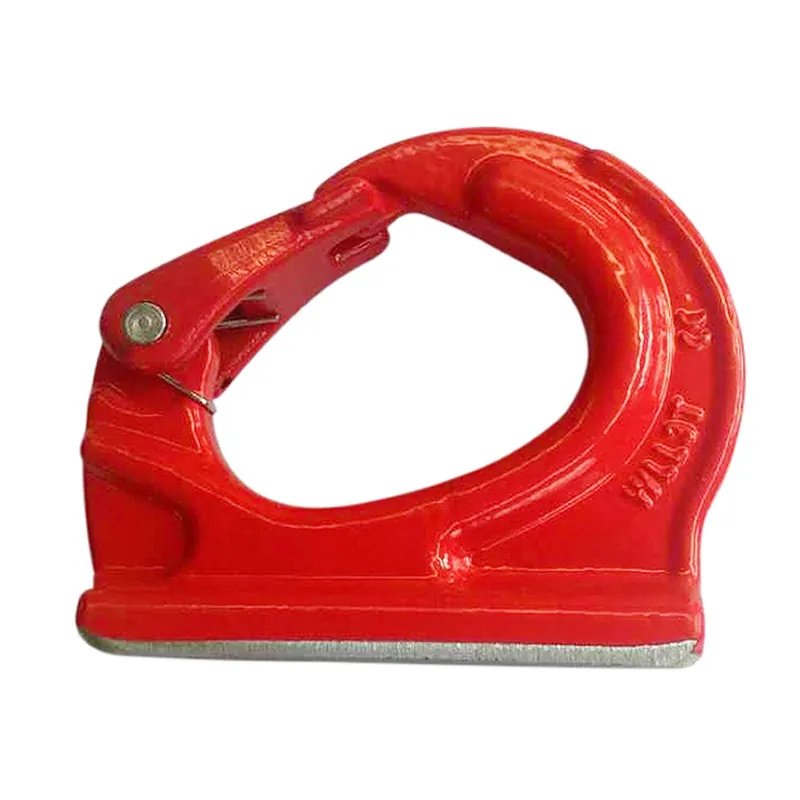

AMH Weld-On Bucket Hooks – Grade 80 Alloy Steel

AMH Weld-On Bucket Hooks provide a strong, reliable lifting point when permanently attached to equipment such as buckets, blades, and booms. Forged from high-strength Grade 80 alloy steel, these hooks are ideal for connecting chain, wire rope, or synthetic slings in lifting or pulling applications. Each hook comes with an integrated safety latch and is fully compliant with ASTM A952/A952M-2 and ASME B30.10 standards.

Key Features:

• Made from Grade 80 alloy steel for strength and durability
• Weld-on design offers a permanent lifting or pulling point on heavy equipment
• Compatible with chain, wire rope, or web slings
• Safety latch included on every hook; replacement latches also available
• Meets ASTM A952/A952M-2 and ASME B30.10 requirements
• Warning: Never exceed the rated working load limit (WLL). Do not use for lifting people or over people.

Size & Capacity Range:

Available in capacities from 1 ton to 20 tons, these hooks fit a wide range of equipment and applications. Hook body sizes and profiles vary accordingly, with compact models for light-duty work and large-bodied hooks for high-capacity jobs.

Note: Hooks must be welded by qualified personnel following proper welding procedures. Always inspect before use.

View AllClose

Specifications

MPN—–WBH16
Type—–Weld-On
Material—–Grade 80 Alloy Steel
Color—–Red
WLL (tons)—–16
Safety Factor—–5:1
Overhead Lifting Rated—–Yes
Overall Length—–10.61"
Throat Opening—–2.91"
Attachment Method—–Other
Latch Type—–Flipper
Swivel—–No
Bearing—–No
Approx. Weight (lbs)—–19.84
Country of Origin—–Imported
