Best Seller Suncor 1/2" Stainless Steel Screw Pin Anchor Shackle - 1.5 Ton WLL
Home / Rigging Hardware / Best Seller Suncor 1/2" Stainless Steel Screw Pin Anchor Shackle – 1.5 Ton WLL

Best Seller Suncor 1/2" Stainless Steel Screw Pin Anchor Shackle – 1.5 Ton WLL

Original price was: $28.38.Current price is: $14.19.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0008394 Category: Tag:
Share

Product Description

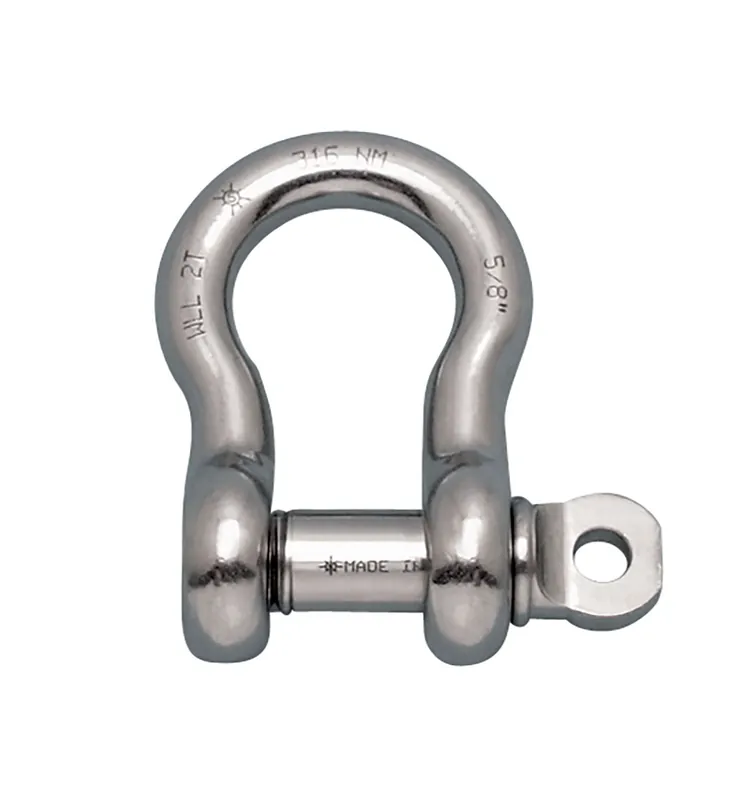

Suncor Anchor Shackles – 316-NM Stainless Steel, Oversize Screw Pin

The Suncor Anchor Shackle is manufactured from grade 316-NM stainless steel and features an oversize screw pin for added strength and security. Designed specifically for demanding marine environments, this stainless steel anchor shackle delivers excellent corrosion resistance and long-term durability in salt water applications.

Commonly used to connect the anchor to the chain, these shackles are load rated and built to meet stringent industry and military specifications, making them suitable for marine, industrial, and rigging use where performance and reliability matter.

Key Features:

  • 316-NM stainless steel for superior corrosion resistance in saltwater environments
  • Oversize screw pin design for increased strength and secure connections
  • Drop forged construction for toughness and load-bearing performance
  • Load rated and marked to the nearest fractional ton
  • Available in retail and bulk packaging

Specifications:

  • Fed. Spec. RR-C-271, Type IVA, Class 2
  • ASME B30.26-2010
  • MIL-DTL-32655 (excluding S0116-FS05)

Pro Tip: Anchor shackles are designed for inline loading. Always ensure the pin is fully tightened and properly seated before use. Periodically inspect threads and body for wear or deformation, especially in continuous saltwater exposure.

Specifications – Anchor Shackles with Oversize Screw Pin

Item Number Size (A) Pin Diameter (B) Throat Opening (C) Inside Length (D) WLL (lbs) Weight (lbs)
S0116-FS05 3/16″ 0.26″ 0.41″ 0.83″ 650 0.06
S0116-FS07 1/4″ 0.31″ 0.47″ 1.11″ 1,000 0.10
S0116-FS08 5/16″ 0.38″ 0.53″ 1.20″ 1,300 0.16
S0116-FS10 3/8″ 0.44″ 0.66″ 1.41″ 1,500 0.29
S0116-FS12 7/16″ 0.50″ 0.72″ 1.77″ 2,000 0.42
S0116-FS13 1/2″ 0.63″ 0.82″ 1.83″ 3,000 0.67
S0116-FS16 5/8″ 0.75″ 1.02″ 2.41″ 4,000 1.27
S0116-FS20 3/4″ 0.88″ 1.25″ 2.84″ 6,000 2.11
S0116-FS22 7/8″ 1.00″ 1.48″ 3.30″ 8,000 3.23
S0116-FS25 1″ 1.13″ 1.70″ 3.80″ 10,000 4.62
S0116-FS32 1-1/4″ 1.38″ 2.03″ 4.69″ 14,000 9.58

All dimensions are nominal (+/- 3%) and subject to change without notice. Working Load Limits are based on proper, inline loading only.

View AllClose

Specifications

MPN—–S0116-FS13
Size—–1/2"
Type—–Screw Pin Anchor
Material—–Stainless Steel 316
Color—–Silver
WLL (tons)—–1.5
WLL (lbs)—–3000
Overhead Lifting Rated—–Yes
Inside Length—–1.83"
Throat Opening—–0.82"
Pin Diameter—–0.63"
Approx. Weight (lbs)—–0.67
Country of Origin—–Imported
