Big Sale FIH Single Acting Hydraulic Cylinders - 5 Ton Capacity - 7.00" Stroke - S57
Home / Hydraulics / Big Sale FIH Single Acting Hydraulic Cylinders – 5 Ton Capacity – 7.00" Stroke – S57

Big Sale FIH Single Acting Hydraulic Cylinders – 5 Ton Capacity – 7.00" Stroke – S57

Original price was: $391.01.Current price is: $156.40.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0006410 Category: Tag:
Share

Product Description

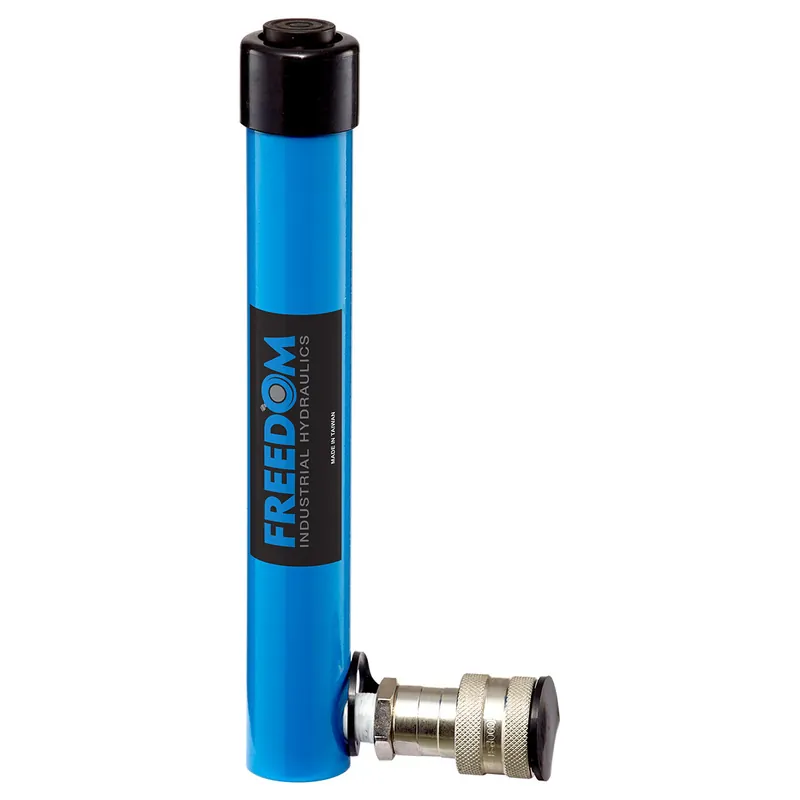

Freedom Hydraulics S57 – 5 Ton Single Acting Cylinder

The Freedom Hydraulics S57 is a long-stroke, high-performance hydraulic cylinder designed to deliver 5 tons of force with over 7 inches of travel. As one of the tallest cylinders in the 5-ton S-series, the S57 is ideal for applications that demand maximum extension in a compact form factor—perfect for lifting, jacking, and pushing in maintenance and industrial operations.

Key Features

  • Extended Reach: 7.06″ stroke offers long lifting range while maintaining portability.
  • Durable Steel Construction: High-strength cylinder body and chrome-plated piston rod resist wear and corrosion.
  • Dual Bronze Bearings: Top and bottom bronze bushings reduce friction and extend service life.
  • Contamination Control: Wiper seal prevents dirt and debris from entering the cylinder chamber.
  • Spring Return Design: Single acting configuration with internal return spring for automatic retraction after load release.
  • Threaded Attachments: Includes standard piston and collar threads, plus base mounting holes for fixture adaptability.
  • Standard Port Compatibility: 3/8″-18 NPTF female port (inferred from series) allows quick integration with hydraulic systems.

Specifications

  • Capacity: 5 Ton
  • Stroke: 7.06 inches
  • Collapsed Height: 10.74 inches
  • Extended Height: 17.80 inches
  • Effective Area: 1.1 in²
  • Oil Capacity: 7.7 in³
  • Outside Diameter: 1.5 inches
  • Bore Diameter: 1.18 inches
  • Plunger Diameter: 1.00 inch
  • Base to Coupler Port: 0.79 inches
  • Internal Piston Thread: 3/4″-16 UNF
  • Piston Thread Length: 0.57 inches
  • Base Mounting Holes: 1 hole, 1/4″-20 UNC thread, 0.51″ depth
  • Collar Thread: 1-1/2″-16 UN, 1.1″ thread length
  • Saddle Diameter: 1.0 inch
  • Weight: 4.63 lbs
  • Port Size: 3/8″-18 NPTF (inferred from model family)

Note: Hydraulic pump, hoses, fittings, and accessories sold separately.

View AllClose

Specifications

MPN—–S57
Type—–Single Acting
Material—–Industrial Grade Steel
Color—–Blue
WLL (tons)—–5
WLL (lbs)—–10000
Stroke (in)—–7.06
Collapsed Height (in)—–10.74
Extended Height (in)—–17.8
Approx. Weight (lbs)—–5.36
Country of Origin—–Taiwan
