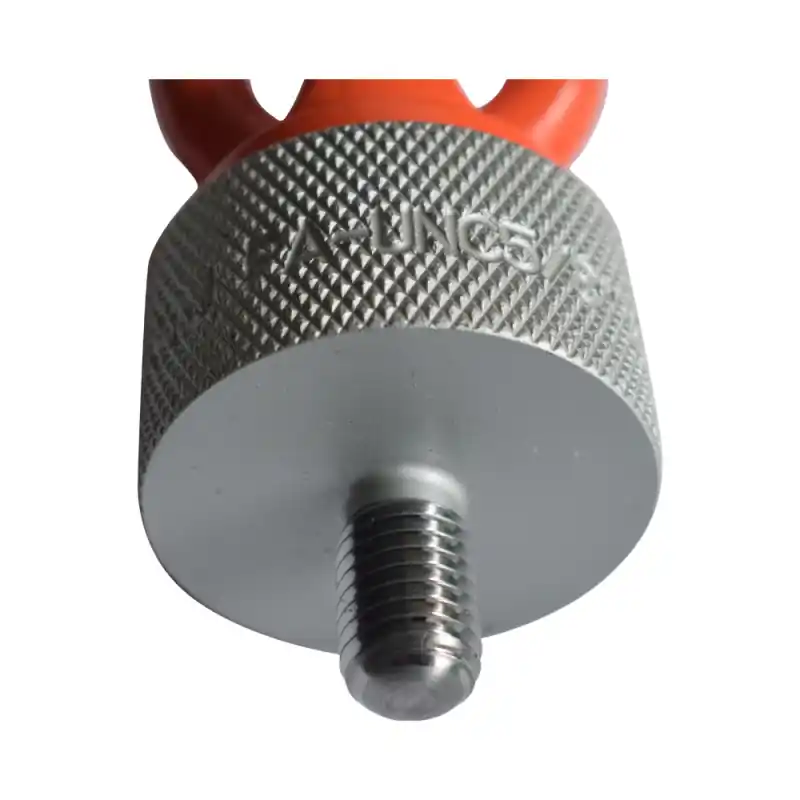

Bolton Tools PA Grade 100 Swivel Hoist Ring UNC5/8"-11 x 1-1/16", 5700lb WLL Buy Online
Home / Material Handling & Storage / Bolton Tools PA Grade 100 Swivel Hoist Ring UNC5/8"-11 x 1-1/16", 5700lb WLL Buy Online

Bolton Tools PA Grade 100 Swivel Hoist Ring UNC5/8"-11 x 1-1/16", 5700lb WLL Buy Online

Original price was: $71.29.Current price is: $35.65.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0013751 Category: Tag:
Share

Material: 23MnCrNiMo54  Hardness: HRC34-38

Executive Standard: EN ISO 12100:2010; EN ISO 3266:2010/A1:2015; EN 1677-4:2000/A1:2008

  • Grade 100
  • CE CERTIFICATE
  • 4 Times coefficient of safety
  • Forge alloy steel

Product Description

Model PA-UNC5/8″ Dimension D 2-23/64″
Dimension M 5/8″-11 Dimension F 1-1/16″
Dimension A 35/64″ Dimension G 2-7/16″
Dimension B 1-47/64″ Dimension T 4-13/64″
Dimension C 1-29/64″ WLL 5732 lbs

Inspection Procedure

  1. Overall dimensions inspection according to acceptance criteria. No crack and defect, the marks of specification , supporting capacity and material on the surface should be clear.
  2. Test with thread ring gauge. Precision grade 6g(0.21OZ)
  3. Thread axis vertical to bearing surface, rotating the gauge to the screw root, if it’s of seamless joint with bearing surface, then vertical qualified.
  4. Qualified hoist ring must offer the certificate or detailed examining report in written form, and keep in the archives.
