Sale!

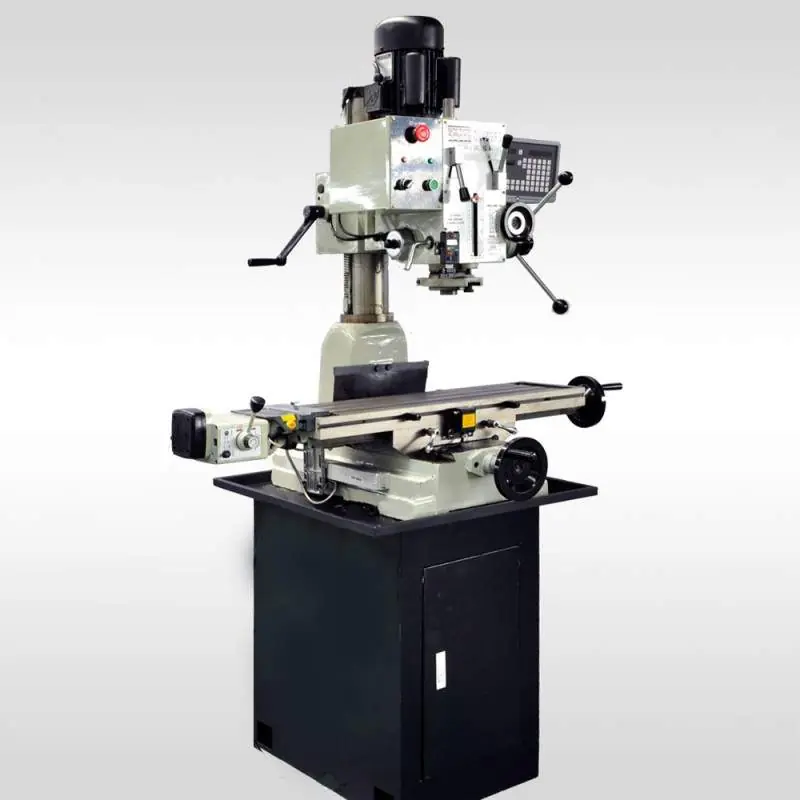

Bolton Tools ZA45GPD 9 1/2" x 32" GEAR-HEAD MILL DRILL WITH POWER FEED AND 2 AXIS DRO Certified
Home / Metal Machine Tool Industry / Bolton Tools ZA45GPD 9 1/2" x 32" GEAR-HEAD MILL DRILL WITH POWER FEED AND 2 AXIS DRO Certified

Bolton Tools ZA45GPD 9 1/2" x 32" GEAR-HEAD MILL DRILL WITH POWER FEED AND 2 AXIS DRO Certified

Original price was: $2,889.79.Current price is: $1,155.92.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0017877 Category: Tag:
Share

9 1/2″ x 32″ GEAR-HEAD MILL DRILL WITH POWER FEED AND 2 AXIS DRO | ZA45GPD

Product Description

Specifications:

  • 1. Motor: 2 HP, 110V/220V, single-phase, 1720 RPM, prewired 110V
  • 2. Drilling capacity: 1″;
  • 3. Face mill capacity: 3″
  • 4. End mill capacity: 3/4″
  • 5. Swing: 20-1/2″
  • 6. Max. distance spindle to table: 17-5/16″
  • 7. Spindle taper: R-8
  • 8. Spindle travel: 5″
  • 9. Quill diameter: 3″
  • 10. Number of speeds: 6
  • 11. Spindle speeds: 60HZ: 95,175,310,450,850,1500 RPM
  • 12. Head swivel: 360°
  • 13. Head tilt left and right: ±90°
  • 14. Column diameter: 4-1/2″
  • 15. Table size: 9-1/2″ x 32″
  • 16. Table travel (longitudinal): 20-1/2″
  • 17. Table travel (cross): 9″
  • 18. T-slots: 4 at 2-1/8″ centers, 5/8″ wide
  • 19. Overall dimensions: 47″ L x 32″ W x 55″ H
  • 20. Approximate shipping weight: 705 lbs.
