Product Description

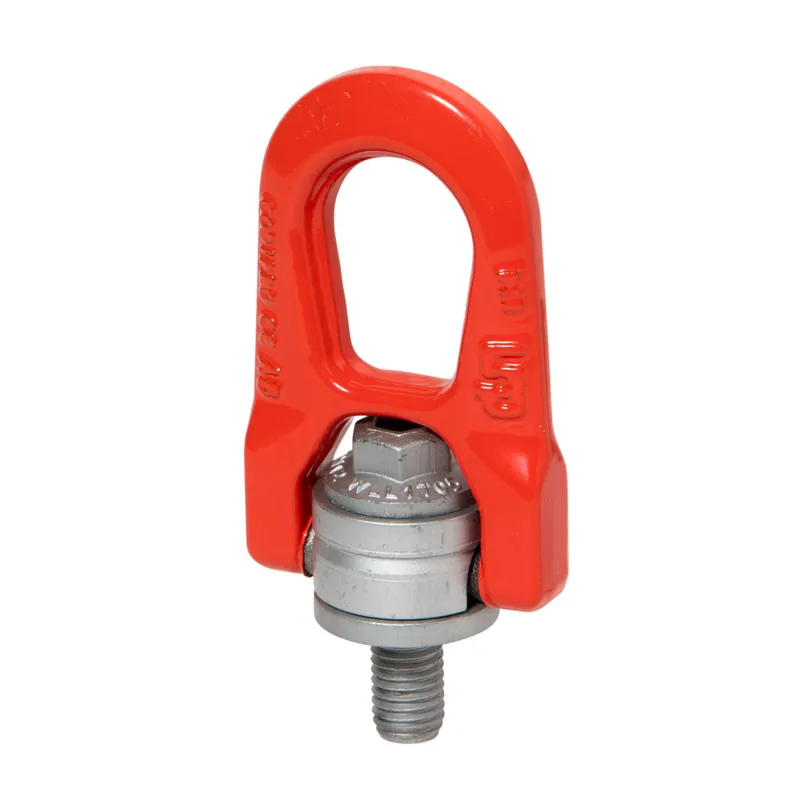

Codipro DSR Double Swivel Hoist Rings – Versatile Lifting with Full Range of Motion

The Codipro DSR Double Swivel Hoist Ring is designed for versatile lifting applications where flexibility and safety are critical. Featuring 360° rotation and 180° pivoting under load, the DSR automatically aligns with the direction of force—reducing side loading and improving overall rigging performance.

With a more compact design than heavy-duty alternatives, the DSR is ideal for a wide range of lifting tasks, from general manufacturing to maintenance and assembly operations. It provides reliable performance while maintaining an excellent working load limit-to-weight ratio.

Manufactured to EN 1677-1 and the Machinery Directive 2006/42/CE, each unit includes clear WLL markings, tightening torque, and individual traceability for safe and compliant lifting operations.

Key Features

  • Double swivel design: 360° rotation and 180° pivot under load
  • Self-aligning under load: Reduces side loading and improper lifting angles
  • Compact, versatile design: Ideal for general-purpose lifting applications
  • Wide size range: Suitable for light to medium-duty lifting tasks
  • High safety factor: 5:1 (standard) and 4:1 configurations available
  • Smooth rotation: Anti-tribocorrosion lubrication for long service life
  • Thread protection design: Helps reduce wear during use
  • Clear markings: CE, WLL, and tightening torque stamped on each unit
  • Individually serialized: Full traceability for inspections and compliance

Important: Always tighten to the specified torque and ensure proper thread engagement. While the DSR automatically aligns under load, proper installation is essential for safe lifting operations.

Specifications

Thread Type Size Range WLL (5:1) WLL (4:1)
Metric M5 – M42 0.07T – 8.5T 0.10T – 9.0T
UNC 1/4″ – 1-1/4″ 330 – 13,500 lbs 450 – 13,500 lbs

Additional Specifications: Zinc-coated for corrosion resistance. Operating temperature -20°C to +200°C. Meets EN 1677-1 and Machinery Directive 2006/42/CE.

Specifications and dimensions provided by the manufacturer. Subject to technical changes.

View AllClose

Specifications

MPN—–DSR M 36 UP
Size—–M36
Type—–Standard
WLL (tons)—–8
Safety Factor—–5:1
Overhead Lifting Rated—–Yes
Thread Type—–Metric
Thread—–54 mm
Approx. Weight (lbs)—–11.9
Approx. Weight (kg)—–5.4
Country of Origin—–Luxembourg
