Product Description

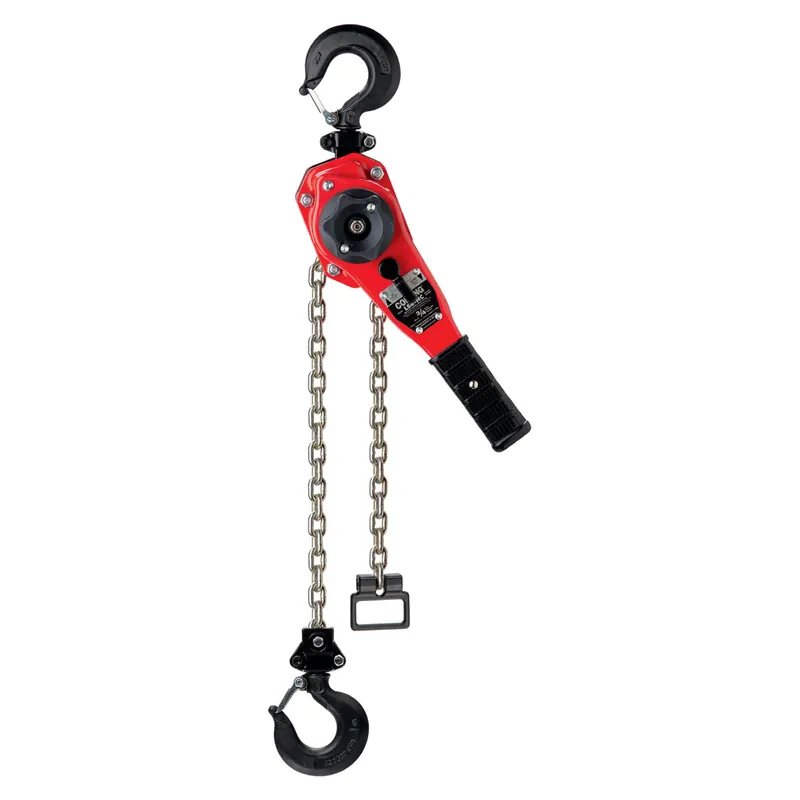

Coffing® LSB-NC Ratchet Lever Chain Hoist

The Coffing LSB-NC lever hoist delivers efficient lifting, pulling, and positioning performance in a compact, American-made design. Built in Wadesboro, North Carolina with American and imported parts, the LSB-NC features American-made hooks and load chain, a lightweight stamped-steel housing, and a short handle for tight-space applications. Engineered for long life and easy use, it’s a dependable choice for industrial, construction, and maintenance operations.

Key Features

  • Made in the USA: Manufactured in Wadesboro, NC, using American-made hooks and chain produced by Columbus McKinnon.
  • Compact & Lightweight: Short handle and durable steel body make it easy to transport and operate in confined work areas.
  • Low Pull Force: Double-reduction gearing ensures smooth, controlled lifting with minimal handle effort.
  • Free Chaining Mechanism: One-hand slack take-up design that won’t accidentally freewheel while under load.
  • Positive Load Control: Enclosed screw-and-disc load brake stays clean and dry, providing consistent, secure load holding.
  • 360° Rotating Handle: Allows flexible rigging and operation in any orientation, even in tight spaces.
  • Rugged & Corrosion-Resistant: Powder-coated finish and plated chain protect against harsh jobsite conditions.
  • Forged Safety Hooks: American-made hooks with forked latches ensure positive engagement of the hook tip.
  • Optional Shipyard Hooks: Available on 1, 1-1/2, and 3-ton models for specialized applications.

Capacities & Lifts

  • Capacities: 3/4, 1, 1-1/2, 3, and 6 tons (metric rated)
  • Standard Lifts: 5 ft, 10 ft, 15 ft, and 20 ft (custom lifts available)

Model Specifications

Capacity Min. Headroom Reeving Handle Length Handle Effort Weight Range (5–20 ft Lift)
3/4 Ton (750 kg) 11.73″ 1 Fall 9.84″ 53 lb 13.59 – 20.34 lb
1 Ton (1,000 kg) 12.40″ 1 Fall 10.51″ 51 lb 20.01 – 29.01 lb
1-1/2 Ton (1,500 kg) 13.94″ 1 Fall 10.51″ 77 lb 20.34 – 30.79 lb
3 Ton (3,000 kg) 16.46″ 1 Fall 14.80″ 87 lb 38.98 – 67.81 lb
6 Ton (6,000 kg) 21.34″ 2 Falls 14.80″ 92 lb 65.95 – 108.61 lb

*Minimum headroom measured hook-to-hook at full lift.

Common Applications

  • Construction and heavy equipment maintenance
  • Rigging and load positioning in confined areas
  • Plant and utility maintenance
  • Shipbuilding and fabrication work

Additional Details

  • Meets applicable ASME B30.21 hoist standards.
  • Standard models include plated alloy load chain and forged alloy hooks.
  • Powder-coated housing resists wear and corrosion for extended service life.
  • Custom lift lengths and optional shipyard hooks available upon request.

Made in the USA with American and imported parts.

View AllClose

Specifications

MPN—–LSB10015NC
Model—–LSB-NC
Type—–Lever Chain
Length (ft)—–15
WLL (tons)—–1
WLL (lbs)—–2000
Overhead Lifting Rated—–Yes
Headroom—–12.38"
Handle Length—–9.25"
Approx. Weight (lbs)—–26.01
Country of Origin—–USA with US & Global Components
