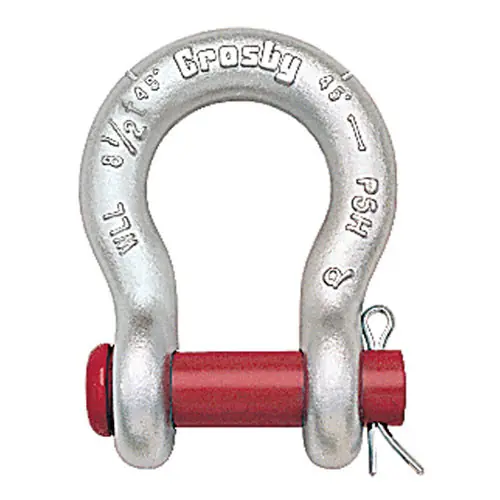

Crosby 5/8" G-213 Round Pin Anchor Shackle – 3-1/4 Ton WLL – #1018115 Sale

Product Description

• Forged, Quenched & Tempered, with alloy pins
• Working Load Limit permanently shown on every shackle
• Hot-dip galvanized
• Sizes 3/8″ and below are mechanically galvanized
• Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit
• Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification; charges for proof testing and certification available when requested at the time of order
• Shackles are Quenched & Tempered and can meet DNV impact requirements of 42 Joules (31 ft-Ib) at -20° C (-4° F)
• G-213 Round pin anchor shackles meet the performance requirements of Federal Specification RR-C-271H, Type IVA, Grade A, Class 1, except for those provisions required of the contractor
• DO NOT SIDE LOAD ROUND PIN SHACKLES
• Look for the Red Pin®… the mark of genuine Crosby quality

View AllClose

Specifications

MPN—–1018115
Model—–G-213
Size—–5/8"
Type—–Round Pin
Material—–Carbon Steel
Finish—–Galvanized
WLL (tons)—–3.25
WLL (lbs)—–7150
Safety Factor—–6:1
Overhead Lifting Rated—–Yes
Inside Length—–2.38"
Inside Width—–1.69"
Throat Opening—–1.06"
Pin Diameter—–0.75"
Approx. Weight (lbs)—–1.5
Country of Origin—–USA
