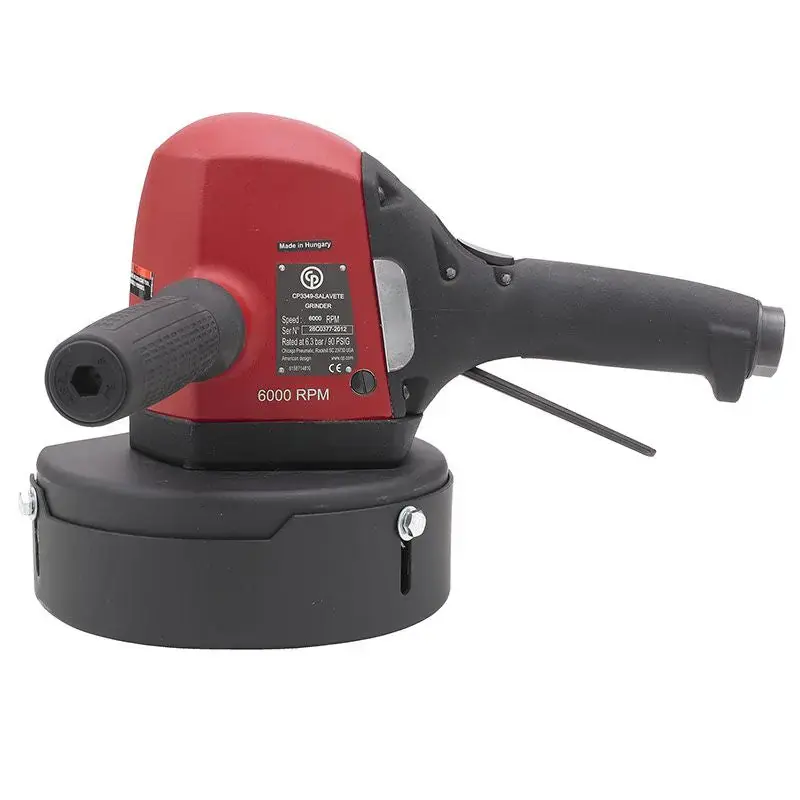

Chicago Pneumatic CP3349-SALAVETE 6″(150 mm) Pneumatic Vertical Grinder – CP 6151609150

Benefits

Highest durability in demanding applications, up to 2,000 hours maintenance intervalsDouble ergonomic action safety lever facilitates single-handed engagement and helps reduce risk of accidental start upAn ergonomic handle to promote a good operating position by keeping the operator’s wrist straightBuilt-in lubricant tank for constant lubrication, reducing failure and increasing tool lifetimeReinforced rubber grip side handle provides a steady grip, increasing operator grinding control

The CP3349 vertical grinder – 6″ to 9″ (150 to 230 mm) is designed with a powerful governed motor of 4 hp/3000 W and a free speed from 6,000 to 7,700 rpm. The Series features a curved design to increase control and comfort, a safety lever, a reinforced rubber grip, and high resistance protective guard. Built-in oil tank for high durability, it offers up to 2000 h maintenance intervals. Tools are equipped with 5/8-11′ spindle thread. The range consists of 5 models: CP3349-SALAVEL, SALAVET for ANSI NA market and CP3349-SALAVADE, SALAVETE, SALAVELE for CE market.

Technical Specifications

Air information

  • Air consumption at load: 91 cfm
  • Air inlet thread size (in): 1/2
  • Air inlet thread type: BSP
  • Max dynamic air working pressure: 90 psi
  • Min hose diam (16 ft hose length): 0.63 in
  • Min hose diam (5 m hose length): 15 mm

Power & Battery

  • Max power: 4.02 hp

Size & Weight

  • Length (L):11.02 in
  • Weight (W):9.7 lb

Design & Functions

  • Autobalancer:No
  • Exhaust:Side
  • Main Material type:Aluminium
  • Output Spindle Thread:5/8-11 UNC
  • Rotative inlet:No
  • Spindle lock:No
  • Starting system:Safety lever
  • Swiveling guard:No
  • Wheel/Disc diameter (in):6
  • Wheel/Disc diameter (mm):150

Speed

  • Air consumption at free speed:25 cfm
  • Overspeed shut-off: Yes

Noise & vibrations

  • Sound Power:95 dB(A)
  • Sound Pressure:84 dB(A)
  • Vibration (m/s²):<2.5
