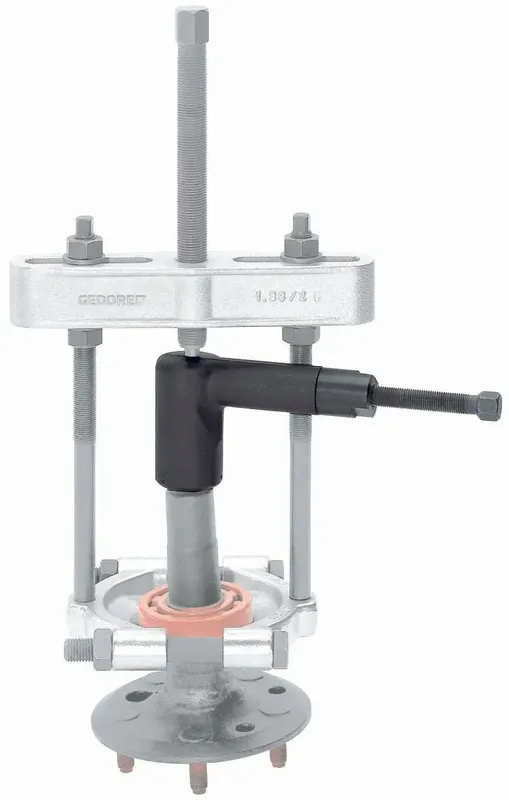

Gedore Hydraulic Press, 15 T – GD 8024170

A Hydraulic Press is a heavy-duty tool designed to apply substantial pressure to materials, facilitating a range of tasks such as shaping, bending, and pressing. Utilizing hydraulic power, this press generates high force through a hydraulic cylinder, allowing for precise control and efficient processing of materials.

Features:

• By using the hydraulic press, the performance of the normal pressure spindle is considerably increased
• Operation:
  • With pressure released, the press is placed between the pressure spindle and the end of the shaft
  • The pressure spindle is then tightened firmly
  • Care must be taken that the centerline of the shaft, the hydraulic press, and the pressure spindle are exactly in alignment
  • Then the hydraulic spindle is screwed inwards
• Important:
  • Release the hydraulic press after use

Specifications:

• Installation Height: 90
• Lifting Height (max.): 15mm
• Weight: 3.97 lbs
• Working Pressure (max.): 15 T
