Last Chance Thern 2W40-BM Worm Gear Hand Winch – 4600 lbs Lifting Capacity

Product Description

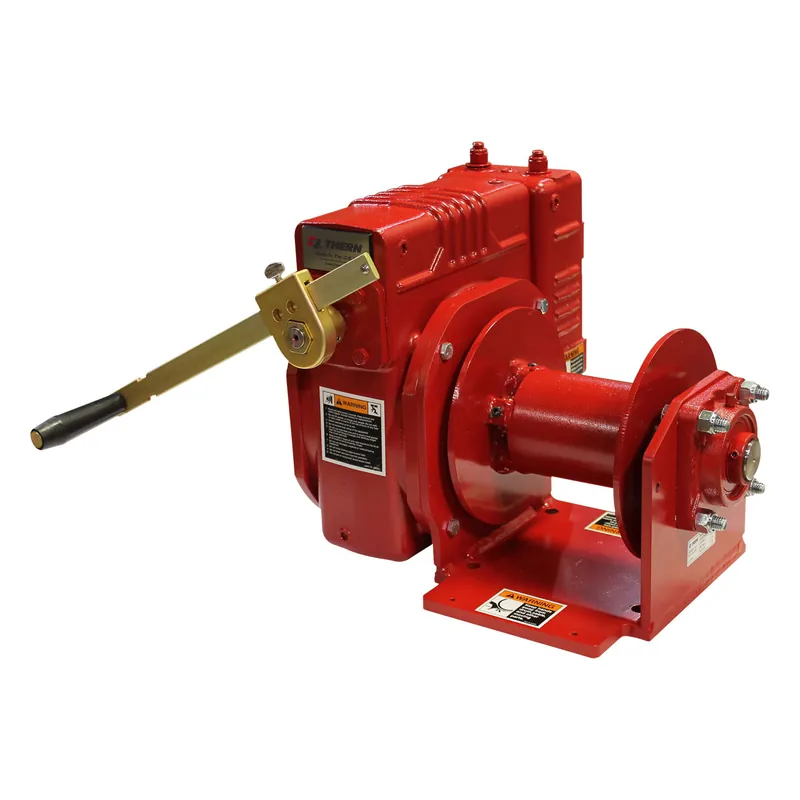

Thern 2W40-BM Worm Gear Hand Winch – 4,600 lb Lifting Capacity

The Thern 2W40-BM is a heavy-duty worm gear hand winch rated for lifting and lowering loads up to 4,600 lbs. Featuring bronze worm gears, an enclosed oil bath gearbox, and an automatic brake, it provides secure load control with smooth operation. For even greater versatility, the 2W40-BM can be driven by either the included hand crank or a portable drill (max 400 RPM), allowing faster lifting and lowering in demanding industrial settings.

Key Features

• Load rating: 4,600 lbs – rated for lifting
• Automatic brake ensures safe and secure load holding
• Gear ratio: 31:1 for controlled operation
• Drum capacity: up to 200 ft of 5/16″ or 3/8″ wire rope
• Force to lift 1,000 lbs: approx. 11 lbs
• Drill-drivable design – compatible with portable drill (max 400 RPM) for faster lifting/lowering
• Bronze worm gears reduce noise, enhance precision, and extend service life
• Enclosed oil bath lubrication for reduced heat and wear

Important Notes

• Wire rope sold separately
• Not for lifting people or loads over people

View AllClose

Specifications

MPN—–2W40-BM
Type—–Worm Gear
Material—–Cast Aluminum
Finish—–Painted Red
WLL (lbs)—–4600
Overhead Lifting Rated—–Yes
Handle Length—–13.5"
Approx. Weight (lbs)—–119
Country of Origin—–USA
