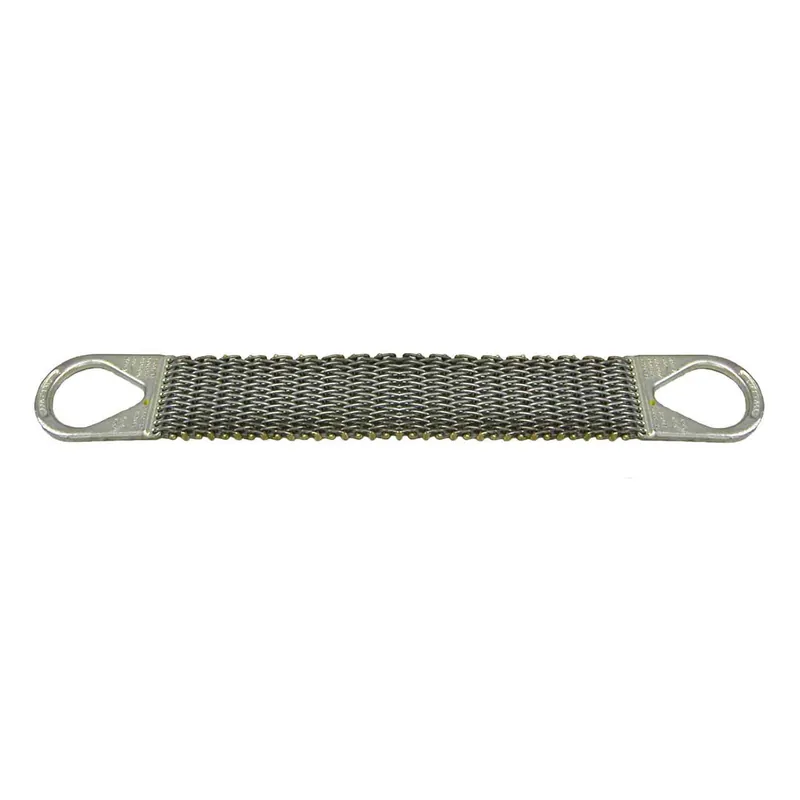

Lift-All 4" x 10 ft Type 2 Roughneck Wire Mesh Sling – 10 Gage – 4800 lbs WLL Luxury

Product Description

Lift-All Roughneck™ Wire Mesh Slings

Roughneck™ Wire Mesh Slings from Lift-All offer rugged, reliable lifting performance in demanding environments such as steel service centers, metalworking shops, and anywhere loads may be hot, abrasive, or sharp-edged. Built from galvanized high-tensile wire mesh with durable alloy steel end fittings, these slings are designed for maximum load control, extended service life, and minimal stretch.

Two Sling Types Available

• Type 1 (Choker Style): Features a triangle and choker fitting. Ideal for secure single-leg choker hitches. Unlike other sling types, Roughneck Type 1 mesh slings do not require a capacity reduction when used in a choker hitch.
• Type 2 (Basket Style): Features a triangle at each end. Perfect for vertical or basket hitches. Provides balanced, wide contact area to distribute load forces effectively.

Wire Gauge Options

• 10 Gauge Mesh (Standard): Heavy-duty and most commonly ordered. Offers higher capacity, shorter lead times, and better pricing than 12 gauge.
• 12 Gauge Mesh (Optional): Medium-duty version available upon request for lighter-duty lifting applications.

Capacity Ranges by Mesh Gauge*

• 10 Gauge (2″ to 20″ wide): 2,300 to 24,000 lbs vertical / up to 48,000 lbs basket
• 12 Gauge (2″ to 12″ wide): 1,600 to 9,600 lbs vertical / up to 19,200 lbs basket

*Rated capacities are based on vertical and basket hitches. Sling capacity decreases as the angle from horizontal decreases. Do not use at angles below 30°.

Key Features

• High tensile galvanized steel mesh resists abrasion, cutting, and heat (up to 550°F).
• End fittings are zinc plated alloy steel for corrosion resistance and long life.
• Low stretch design protects the load and improves handling control.
• Wide-bearing surface reduces load damage and enhances load stability.
• Each sling is proof-tested, certified, and permanently marked with capacity and serial number.

Ordering Notes

• These slings are built to order and are not returnable.
• Optional 304 stainless steel mesh is available for corrosive environments—please contact us for special order options.
• Part Number Schema (example): 6T110X10 = 6 ft Type 1, 10 ga wire, 10″ wide mesh.

Inspection & Maintenance

Wire mesh slings must be removed from service if they show signs of broken welds, damaged wires, end fitting wear, excessive corrosion, or deformation. Lift-All offers repair and recertification services for all brands of mesh slings.

WARNING: NOT FOR EDGE LOADING. Full mesh width must contact load.

View AllClose

Specifications

MPN—–4T210X10
Type—–Basket
Material—–10 Gage
Length (ft)—–10
Width—–4"
Vertical WLL (lbs)—–4800
Basket WLL (lbs)—–9600
Safety Factor—–5:1
Overhead Lifting Rated—–Yes
Inside Eye—–3"
Approx. Weight (lbs)—–27.5
Country of Origin—–USA
