Sale!
Order Now Codipro DSS Gradup M48 (x3) 17T Swivel Hoist Ring
Home / Rigging Hardware / Order Now Codipro DSS Gradup M48 (x3) 17T Swivel Hoist Ring

Order Now Codipro DSS Gradup M48 (x3) 17T Swivel Hoist Ring

Original price was: $1,738.00.Current price is: $695.20.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0000179 Category: Tag:
Share

Product Description

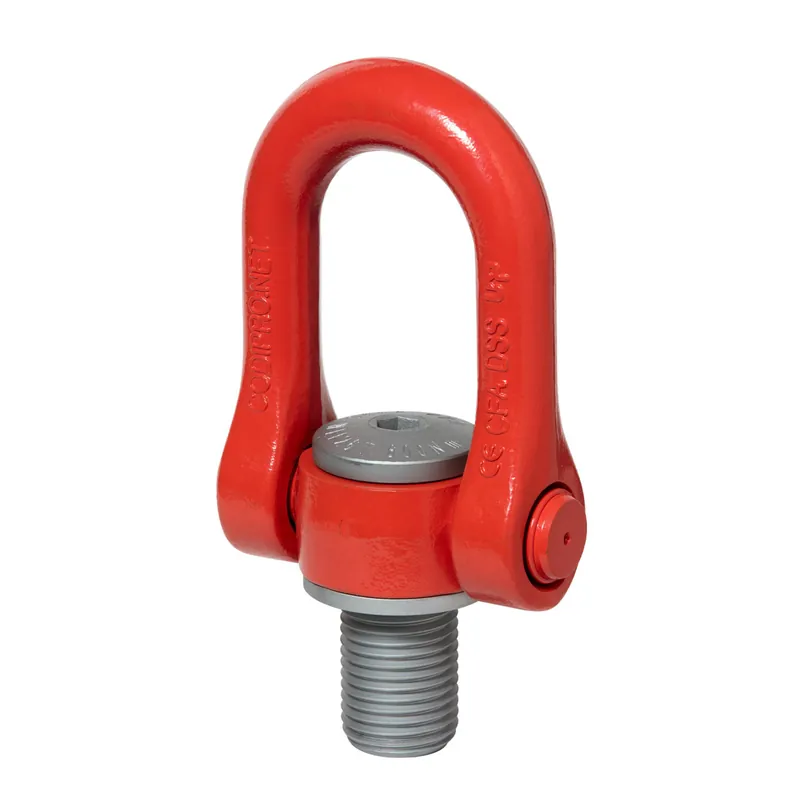

Codipro DSS Double Swivel Hoist Rings – Heavy-Duty Lifting with Wide Shackle Opening

The Codipro DSS Double Swivel Hoist Ring is engineered for heavy-duty lifting applications where higher capacities and increased clearance are required. With 360° rotation and 180° pivoting under load, the DSS automatically aligns with the direction of force—reducing side loading and improving lifting safety.

Unlike standard hoist rings, the DSS features a wider shackle opening, making it easier to connect larger hooks and rigging components. Its optimized design provides an excellent working load limit-to-weight ratio, delivering strong performance without unnecessary bulk.

Manufactured to EN 1677-1 and the Machinery Directive 2006/42/CE, each unit includes clear WLL markings, tightening torque, and individual traceability for safe and compliant lifting operations.

Key Features

  • Double swivel design: 360° rotation and 180° pivot under load
  • Wide shackle opening: Improved hook fit and easier rigging
  • Self-aligning under load: Reduces side loading and improper lifting angles
  • High safety factor: 5:1 (standard) and 4:1 configurations available
  • Optimized WLL-to-weight ratio: High strength without excessive weight
  • Smooth rotation: Anti-tribocorrosion lubrication for long service life
  • Clear markings: CE, WLL, and tightening torque stamped on each unit
  • Individually serialized: Full traceability for inspections and compliance

Important: Always tighten to the specified torque and ensure proper thread engagement. While the DSS automatically aligns under load, proper installation is essential for safe lifting operations.

Specifications

Thread Type Size Range WLL (5:1) WLL (4:1)
Metric M24 – M100 4.5T – 25T 5.5T – 32.1T
UNC 1″ – 2-1/2″ 10,000 – 48,500 lbs 13,000 – 55,000 lbs

Additional Specifications: Zinc-coated for corrosion resistance. Operating temperature -20°C to +200°C. Meets EN 1677-1 and Machinery Directive 2006/42/CE.

Specifications and dimensions provided by the manufacturer. Subject to technical changes.

View AllClose

Specifications

MPN—–DSS M 48×3 UP
Size—–M48
Type—–Standard
WLL (tons)—–17
Safety Factor—–5:1
Overhead Lifting Rated—–Yes
Thread Type—–Metric
Thread—–68 mm
Approx. Weight (lbs)—–24.25
Approx. Weight (kg)—–11
Country of Origin—–Luxembourg
