Premium Thern 2W40-M Worm Gear Hand Winch – 4600 lbs Pulling Capacity

Product Description

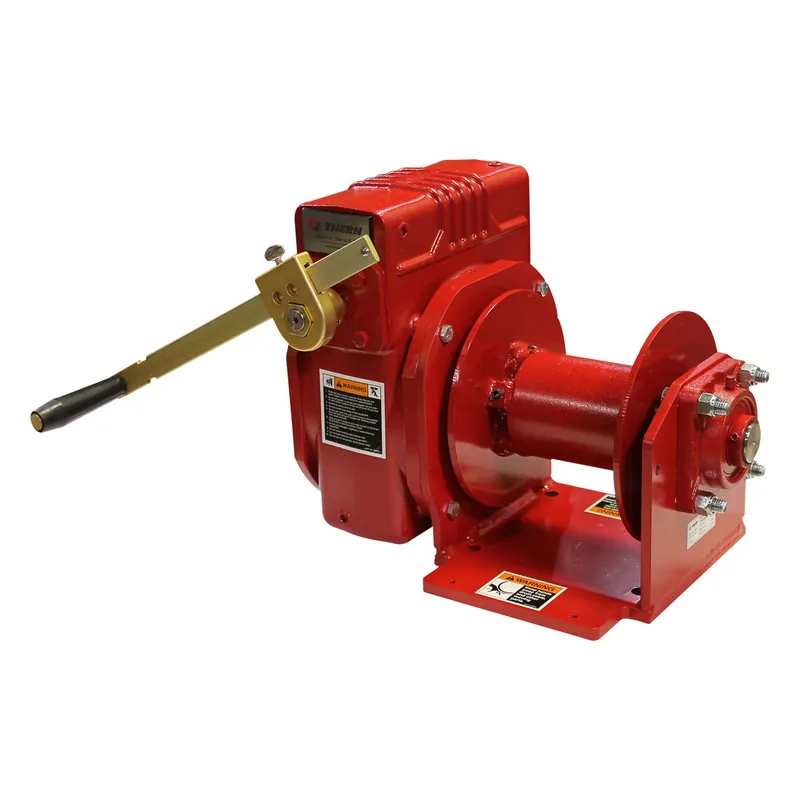

Thern 2W40-M Worm Gear Hand Winch – 4,600 lb Pulling Capacity

The Thern 2W40-M is the highest-capacity worm gear hand winch in its class, designed for horizontal pulling applications only. Rated at 4,600 lbs, it features heavy-duty enclosed gearing, a large-drum design, and bronze worm gears for smooth, quiet operation. Like the 4WM2, the 2W40-M can also be powered by a hand crank or a portable drill, making it efficient for long pulls where manual cranking would be too time-consuming.

Key Features

• Load rating: 4,600 lbs – pulling only (not rated for lifting)
• Gear ratio: 32:1 for maximum control
• Drum capacity: up to 200 ft of 5/16″ or 3/8″ wire rope
• Force to pull 1,000 lbs: approx. 14 lbs
• Drill-drivable design – compatible with portable drill (max 400 RPM) for faster operation
• Bronze worm gears reduce noise and extend gear life
• Enclosed oil bath gearbox minimizes wear and maintenance

Important Notes

• Wire rope sold separately
• For pulling only – not rated for lifting
• Not for lifting people or loads over people

View AllClose

Specifications

MPN—–2W40-M
Type—–Worm Gear
Material—–Cast Aluminum
Finish—–Painted Red
WLL (lbs)—–4600
Overhead Lifting Rated—–No
Handle Length—–13.5"
Approx. Weight (lbs)—–107
Country of Origin—–USA
