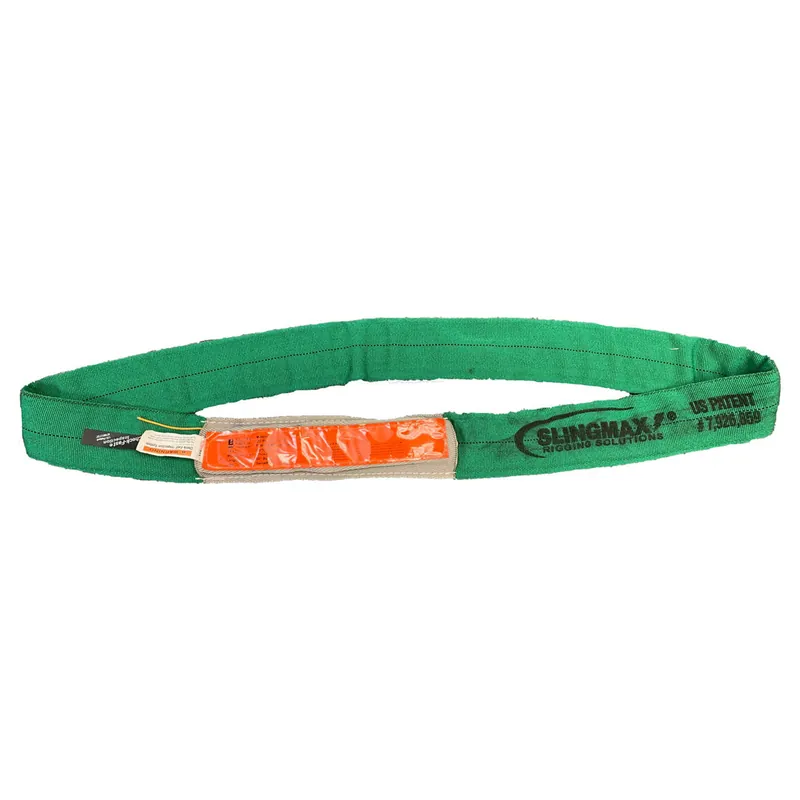

Slingmax Single-Path Extra Covermax SPXCF5000 20' Synthetic Round Sling – 50,000 lbs. WLL Certified

Product Description

Slingmax® SPXCF Single-Path Roundslings – Lightweight Strength with Check-Fast® Safety

The Slingmax® SPXCF Single-Path Extra Covermax® Roundsling is a lightweight, high-capacity synthetic sling designed for demanding lifting operations. Built with a K-Spec® high-performance core and a rugged 2-ply Covermax® jacket, these slings offer outstanding strength and durability while weighing just a fraction of traditional steel rigging. With vertical working load limits ranging from 5,000 lb to 200,000 lb, the SPXCF series is a proven choice for safe, efficient, and easy-to-handle lifting in the field.

Each sling includes the Check-Fast® Inspection System with overload tell-tails, a red inner warning cover, and an optional fiber optic inspection line—giving you real-time indicators of overload or wear. The SPXCF sling weighs approximately 10% of an equivalent capacity wire rope sling, helping reduce strain, setup time, and risk of injury during rigging operations.

• Product range: SPXCF 500 through SPXCF 20000 (5,000 lb to 200,000 lb vertical WLL)
• Core material: K-Spec® core yarn for strength and durability
• Outer cover: 2-ply heavy-duty bulked nylon with Covermax® abrasion resistance
• Inspection features: Check-Fast® overload indicators, red inner cover, and optional fiber optic inspection system
• Weight savings: Only 10% the weight of comparable wire rope slings
• Stretch: Less than 1% elongation at rated capacity
• Proof tested: 2x the rated capacity
• Design factor: 5:1 safety factor
• Repairable: Can be professionally serviced for extended sling life
• Compliance: Meets ASME B30.9, NAVFAC P-307, and Cordage Institute standards
• Made in the USA: Proudly manufactured with premium materials and expert craftsmanship

Strong, Smart, and Easy to Handle

While not as strong as Slingmax® Twin-Path® slings, Single-Path slings are still extremely capable and offer major advantages in weight, safety, and handling. With their integrated inspection systems and wide capacity range, Slingmax® SPXCF slings provide riggers with a reliable, lightweight alternative for tough lifting jobs.

What Size Shackle or Connector Should I Use?

Slings used with fittings shall be compatible with the fittings used. The lifting capacity shall be rated at the lower of the sling or fitting. Fitting openings shall be of the proper shape and size to assure that the sling will seat properly. In other words, the diameters of most commercially available hardware are sufficient for use with a Single-Path® sling of equal capacity. For many customers, this could mean upgrading to alloy shackles, or wide body shackles to achieve the Working Load Limit (WLL) required.

See chart below for full hardware selection and bending radius considerations.

View AllClose

Specifications

MPN—–SPXCF5000X20
Type—–Single-Path
Fiber—–K-Spec
Color—–Green
Length (ft)—–20
Vertical WLL (lbs)—–50000
Choker WLL (lbs)—–40000
Basket WLL (lbs)—–100000
Safety Factor—–5:1
Overhead Lifting Rated—–Yes
Overall Width—–3"
Approx. Weight (lbs)—–20.4
Approx. Weight / ft (lbs)—–1.02
Country of Origin—–USA
