Trusted Brand AMH 20 Ton Geared Trolley
Home / Shop By Brand / Trusted Brand AMH 20 Ton Geared Trolley

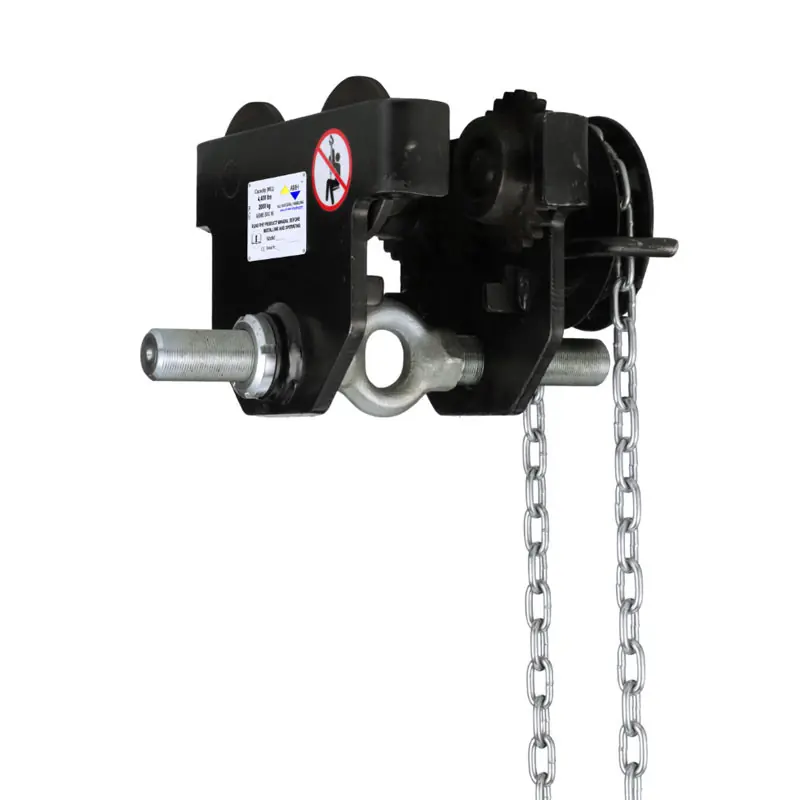

Trusted Brand AMH 20 Ton Geared Trolley

Original price was: $4,838.99.Current price is: $1,935.60.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0004466 Category: Tag:
Share

Product Description

AMH GT Geared Trolleys – Controlled Manual Travel for Heavy Lifting Applications

The AMH GT Series Geared Trolleys provide smooth, controlled beam travel for hoists and suspended loads using a hand chain drive system. Designed for precise positioning and easier movement of heavier loads, GT trolleys are available in capacities from 1 to 30 metric tons and feature durable all-steel construction with machined cast iron wheels for reliable industrial performance.

GT Series trolleys use a geared drive mechanism with hand chain operation, making them ideal for applications where controlled load movement is preferred over manual pushing. Models from 1 to 5 tons feature easy beam adjustment using a threaded hanger shaft, while larger 10 to 30 ton models install from one side with fixed hanger shafts. Precision sealed bearings and low headroom construction help ensure smooth travel and maximum lifting clearance.

Key Features

  • Geared Hand Chain Travel: Provides smooth, controlled trolley movement for accurate load positioning.
  • Wide Capacity Range: Models available from 1 to 30 metric tons.
  • 20 ft Hand Chain Drop: Standard hand chain length included on geared trolley models.
  • Easy Beam Adjustment: 1 to 5 ton models adjust by rotating the threaded hanger shaft.
  • One-Side Installation: 10 to 30 ton models install from one side with fixed hanger shafts.
  • Universal Wheel Tread: Machined cast iron wheels fit flat or tapered beam flanges.
  • Low Headroom Design: Compact profile helps maximize lifting height.
  • Sealed Bearings: Precision sealed and permanently lubricated for smooth operation.
  • Durable Construction: Heavy-duty all-steel body with standard safety lugs.
  • Standards: Meets ASME/ANSI B30.16, OSHA, NASA-STD-8719.9, and EU Directive 2006/42/EC.
  • ATEX Rated: Rated II 3 GD c IIB 54°C X for limited use in hazardous environments.

Important: GT geared trolleys are supplied in their standard flange configuration. Optional wide flange kits for 1 to 5 ton models are sold separately and expand beam flange adjustment up to 12″. GT trolleys up to 5 tons feature a 5:1 design factor for use with powered or manual hoists, while 10 ton and larger models feature a 4:1 design factor and must be derated for powered hoist use.

Specifications

Model Capacity Design Factor Standard Flange Range Wide Flange Range Wide Flange Kit Part No. Hand Chain Drop Weight (lbs)
GT010-20 1 Ton 5:1 2.28″–8.66″ 6.30″–12.01″ PT010-FLG-12 20 ft 35
GT020-20 2 Ton 5:1 2.60″–8.66″ 6.30″–12.01″ PT020-FLG-12 20 ft 52
GT030-20 3 Ton 5:1 2.91″–8.66″ 6.30″–12.01″ PT030-FLG-12 20 ft 83
GT050-20 5 Ton 5:1 3.54″–8.66″ 6.30″–12.01″ PT050-FLG-12 20 ft 108
GT100-20 10 Ton 4:1 4.9″–12″ N/A N/A 20 ft 207
GT160-20 16 Ton 4:1 5.4″–12″ N/A N/A 20 ft 447
GT200-20 20 Ton 4:1 5.4″–12″ N/A N/A 20 ft 458
GT300-20 30 Ton 4:1 6.9″–12″ N/A N/A 20 ft 848

GT geared trolleys include a standard 20 foot hand chain drop. Optional wide flange kits are available separately for 1 to 5 ton models and expand beam flange adjustment up to 12″.

View AllClose

Specifications

MPN—–GT200-20
Type—–Geared
WLL (tons)—–20
WLL (lbs)—–44000
Overhead Lifting Rated—–Yes
Beam Size—–5.40" – 12.00"
Approx. Weight (lbs)—–458
Country of Origin—–Imported
